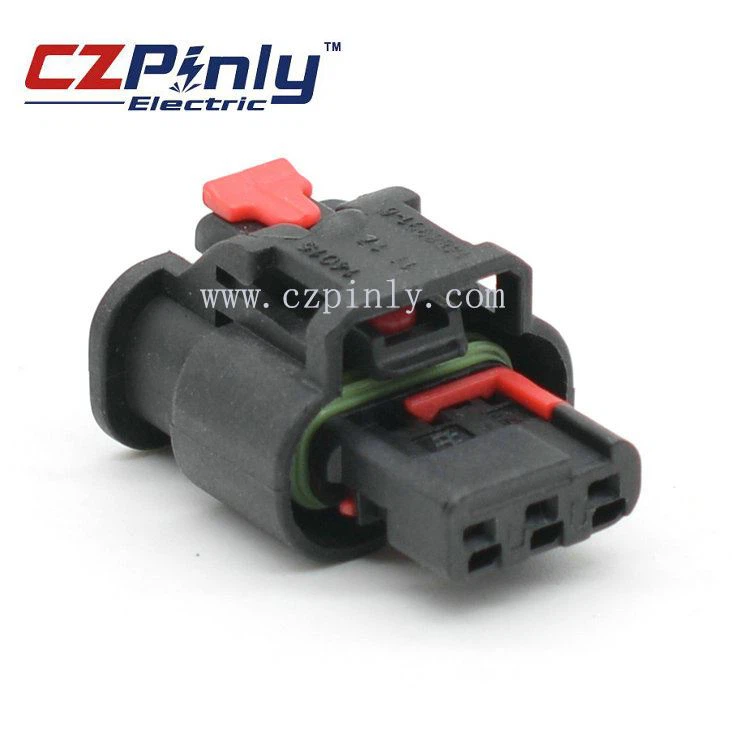

AC Pressure Switch Connector For 2011-2021 Dodge, Chrysler, Jeep, RAM 1488991-5
Product: Automotive Connector
Original Number: 1488991-5
Pinly Part Number: PL7032YA-1.0-21
Material: Polybutylene Terephthalate (PBT)
Color: Black
Gender: Female
- Product Introduction
Product Parameters
Product | Automotive Connector |
Original Number | 1488991-5 |
Pinly Part Number | PL7032YA-1.0-21 |
Material | Polybutylene Terephthalate (PBT) |
Color | Black |
Gender | Female |
Max Operating Temperature | + 140 C |
Min Operating Temperature | - 40 C |
Number of Positions | 3 Position |
Termination Style | Cable Mount (Free-Hanging) |
Sealed/Unsealed | Sealed |
Package | 100 PCS per bag with label,export standard carton. |
Technical Data
1488991-1 Connector housing, MCON Series, Socket, 3 way, 4 mm, MCON Series 1.2mm Clean Body Contacts
MCON 1.2mm socket housing
The MCON 1.2mm socket housing is made of PA66-GF35 and is suitable for cleaning body contacts. These MCON 1.2mm receptacles have sealed enclosures, standard latches and accept a range of wire specifications from 0.5 to 1.5mm2.
CONN RCPT HSG 3POS 4.00MM
Conn Housing RCP 3 POS 4mm Crimp ST Cable Mount Black Package Automotive
MCON 1.2 3 way receptacle housing; key A
Conn Housing RCP 3 POS 4mm Crimp ST Cable Mount
Conn Housing RCP 3 POS 4mm Crimp ST Cable Mount Black Package Automotive
Connector Housing, MCON Series, Receptacle, 3 Positions, 4 mm, MCON Series Clean Body Contacts
INTERFACE DRAWING 3 POSITION SEALED, 1.2mm STANDARD VERSION
Multiple Contact Point (MCP) Interconnection System
3POS, MCON 1.2 CB REC 2p TL SEALED
